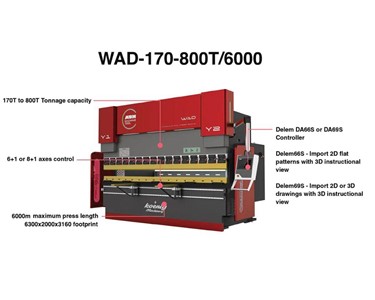

CNC Press Brake 170–800T Heavy Duty Sheet Metal Bender | PB6000

Industrial CNC press brake designed for heavy fabrication and high-accuracy sheet metal bending. Available from 170T to 800T with advanced Delem control and multi-axis options, delivering consistent, repeatable bends for production environments.

Video for ADH Machine Tool CNC Press Brake 170–800T Heavy Duty Sheet Metal Bender | PB6000

Built for Heavy Fabrication Work

CNC Press Brake 170–800T Heavy Duty Sheet Metal Bending Solution

The WAD CNC Press Brake range is engineered for workshops and manufacturers requiring reliable, high-tonnage bending performance with consistent accuracy across large and demanding jobs. Designed for industrial fabrication environments, this press brake delivers precise, repeatable bending for everything from general sheet metal work through to heavy structural components.

Available in configurations from 170T through to 800T and up to 6000mm bending length, the machine is built to handle large workpieces while maintaining stability, accuracy, and operator confidence. Advanced CNC control, multi-axis configurations, and modern safety systems allow operators to produce complex parts efficiently while reducing setup time and material waste.

Whether producing one-off components or running continuous production, the WAD CNC Press Brake is designed to support modern fabrication workflows.

Key Features & Benefits

• Wide tonnage range from 170T to 800T to suit varied fabrication requirements
• Available in 6+1 or 8+1 axis configurations for complex bending applications
• Delem CNC controller options supporting 2D or advanced 3D programming
• Independent Y-axis control and crowning compensation for consistent bend angles
• Heavy-duty machine construction for stability and long service life
• Designed for repeatable accuracy across full bending length
• DSP laser or light curtain safety system options for operator protection

Built for Industrial Production

This machine is well suited to fabrication workshops, metal manufacturers, transport and trailer builders, structural steel fabricators, and general engineering businesses requiring dependable bending capacity. The combination of high tonnage, precision control, and flexible configuration makes it suitable for both small batch and high-volume production.

Why Choose the WAD CNC Press Brake?

Fabricators choose this range when reliability and consistency matter. The machine is designed to reduce operator intervention, improve repeatability between jobs, and maintain accuracy even when working with thicker materials or longer components. The result is faster setup, fewer errors, and improved overall productivity on the workshop floor.

Technical Parameters		UNIT	Specification
Bending Force		kN	110T- 1100kN, 135T- 1350kN, 170T-1700kN, 220T-2200kN, 250T-2500kN, 300T-3000kN, 400T-4000kN, 600T-6000kN, 800T-8000kN
Max. Bending Length		mm	4000
Throat depth		mm	450
Stroke		mm	200
Opening height		mm	480
Fast Speed		mm/s	160
Working Speed		mm	11.5
Return Speed		mm	135
Machine tool Accuracy	Slider Repeat Accuracy	mm	≤±0.03
	Slider Positioning Accuracy	mm	≤±0.03
	Repeat position accuracy of back gauge	mm	≤±0.05
	Workpiece Straightness error	mm/m	0.5
	Bend angle error	?	<±0.5
	Grating ruler Resolution	mm	0.005
Hydraulic Oil Standard			#46/68 Anti-wear hydraulic oil
Oil Tank		L	260
Main Motor		kW	11(110-135T), 15(170T), 18.5(220T), 22(250-300T), 30(400T), 45(600T), 60(800T)
Total Machine Power		kW	From 15.1kW (110T 6+1axes) to 59.1kW (800T 8+1axes)
Weight		Ton	13-15
Dimensions		LxWxH mm	110T - 420018002350, 135T - 420018002450, 170T - 420020002540 220T - 420022002540, 250T - 420020002700, 300T - 420023003100
Power supply			3-phase 415V, 50Hz, 20-60Amp connection (12.7-51Amp consumption depending on model)

Standard Components

Component	Model
Controller	Delem DA66T (DA69T available) – From Delem Netherlands
Back-gauge Axis	6+1 = Y1, Y2, X, R, Z1, Z2 +V-crowning (8+1 available = Y1, Y2, X1, X1, R1, R6, Z1, Z2 + V-crowning)
Hydraulic Valve	HAWE from Germany
Hydraulic Gear Pump	HAWE from Germany
Grating Ruler	Givi from Italy
Main Motor	Estun/Innovance from China
Electrical Components	Schneider from France
Crowning	Automatic Crowning from China
Ball Screw and Linear Guide	PMI/PYM from Taiwan
Servo Motor & Servo Drive	Estun from China
Tubing Connector	JS/EMB from Germany
Clamps	ADH quick clamp
Pedal Switch	Movable roller type from China
Front Protection	Left and right guard from China
Rear Protection	Fully enclosed rear guard from China
Light curtain (included)	LHTECH China
DSP front user laser safety (option)	DSP from Italy

CNC Press Brake 170–800T Heavy Duty Sheet Metal Bending Solution

Whether producing one-off components or running continuous production, the WAD CNC Press Brake is designed to support modern fabrication workflows.

Key Features & Benefits

Built for Industrial Production

Why Choose the WAD CNC Press Brake?

Technical Parameters		UNIT	Specification
Bending Force		kN	110T- 1100kN, 135T- 1350kN, 170T-1700kN, 220T-2200kN, 250T-2500kN, 300T-3000kN, 400T-4000kN, 600T-6000kN, 800T-8000kN
Max. Bending Length		mm	4000
Throat depth		mm	450
Stroke		mm	200
Opening height		mm	480
Fast Speed		mm/s	160
Working Speed		mm	11.5
Return Speed		mm	135
Machine tool Accuracy	Slider Repeat Accuracy	mm	≤±0.03
	Slider Positioning Accuracy	mm	≤±0.03
	Repeat position accuracy of back gauge	mm	≤±0.05
	Workpiece Straightness error	mm/m	0.5
	Bend angle error	?	<±0.5
	Grating ruler Resolution	mm	0.005
Hydraulic Oil Standard			#46/68 Anti-wear hydraulic oil
Oil Tank		L	260
Main Motor		kW	11(110-135T), 15(170T), 18.5(220T), 22(250-300T), 30(400T), 45(600T), 60(800T)
Total Machine Power		kW	From 15.1kW (110T 6+1axes) to 59.1kW (800T 8+1axes)
Weight		Ton	13-15
Dimensions		LxWxH mm	110T - 420018002350, 135T - 420018002450, 170T - 420020002540 220T - 420022002540, 250T - 420020002700, 300T - 420023003100
Power supply			3-phase 415V, 50Hz, 20-60Amp connection (12.7-51Amp consumption depending on model)

Standard Components

Component	Model
Controller	Delem DA66T (DA69T available) – From Delem Netherlands
Back-gauge Axis	6+1 = Y1, Y2, X, R, Z1, Z2 +V-crowning (8+1 available = Y1, Y2, X1, X1, R1, R6, Z1, Z2 + V-crowning)
Hydraulic Valve	HAWE from Germany
Hydraulic Gear Pump	HAWE from Germany
Grating Ruler	Givi from Italy
Main Motor	Estun/Innovance from China
Electrical Components	Schneider from France
Crowning	Automatic Crowning from China
Ball Screw and Linear Guide	PMI/PYM from Taiwan
Servo Motor & Servo Drive	Estun from China
Tubing Connector	JS/EMB from Germany
Clamps	ADH quick clamp
Pedal Switch	Movable roller type from China
Front Protection	Left and right guard from China
Rear Protection	Fully enclosed rear guard from China
Light curtain (included)	LHTECH China
DSP front user laser safety (option)	DSP from Italy
