APS Technology Australia - Single Phase 40A Solid State Relay - SSR-40DA

Supplier: APS Technology Australia Pty Ltd

Single Phase 40A Solid State Relay - SSR-40DA

1/5

A compact single-phase solid state relay for contactless switching of AC industrial loads. The SSR-40DA uses a 3–32 VDC control signal and switches 24–480 VAC loads up to 40 A, ideal for heater and automation control applications.

40 A DC-to-AC solid state relay with 3-3

Overview

The Lorentzzi SSR-40DA is a DC-controlled AC solid state relay designed for industrial switching where fast, silent and wear-free operation is preferred over a mechanical contactor. It is commonly paired with PLC outputs, PID temperature controllers and other low-voltage control devices.

Key features

· 3-32 VDC control input

· 24-480 VAC load voltage

· 40 A nominal maximum load current

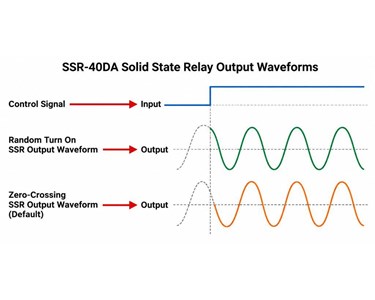

· Zero-cross switching as standard; random turn-on option available

· Maximum on-state voltage drop up to 1.5 V

· Input-to-output dielectric strength specified at 4000 V

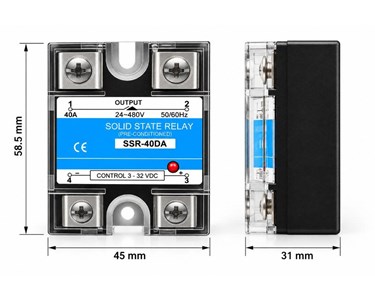

· Compact panel-mount format; appropriate heatsink selection is required for higher continuous currents

· Other Lorentzzi ratings in the same family include 10 A, 25 A, 60 A, 80 A and 100 A variants

Applications of this product

· Industrial electric heaters and ovens

· Packaging and plastics machinery

· PID temperature control systems

· Automation panels and PLC-controlled loads

· Process equipment requiring frequent AC switching

Why choose this product

· No mechanical contacts, reducing contact wear and switching noise

· Wide 3-32 VDC control range suits many PLC and PID outputs

· Broad 24-480 VAC load range for common industrial AC applications

APS Technology can assist with current derating, heatsink selection and load compatibility

To contact APS Technology Australia Pty Ltd about APS Technology Australia Single Phase 40A Solid State Relay - SSR-40DA use Get a quote.

Overview

Key features

· 3-32 VDC control input

· 24-480 VAC load voltage

· 40 A nominal maximum load current

· Zero-cross switching as standard; random turn-on option available

· Maximum on-state voltage drop up to 1.5 V

· Input-to-output dielectric strength specified at 4000 V

· Compact panel-mount format; appropriate heatsink selection is required for higher continuous currents

· Other Lorentzzi ratings in the same family include 10 A, 25 A, 60 A, 80 A and 100 A variants

Applications of this product

· Industrial electric heaters and ovens

· Packaging and plastics machinery

· PID temperature control systems

· Automation panels and PLC-controlled loads

· Process equipment requiring frequent AC switching

Why choose this product

· No mechanical contacts, reducing contact wear and switching noise

· Wide 3-32 VDC control range suits many PLC and PID outputs

· Broad 24-480 VAC load range for common industrial AC applications

APS Technology can assist with current derating, heatsink selection and load compatibility

Read less...

To contact APS Technology Australia Pty Ltd about APS Technology Australia Single Phase 40A Solid State Relay - SSR-40DA use Get a quote.
