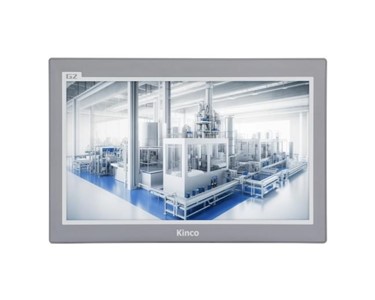

The G2156E2 is a robust, high-performance 15.6-inch HMI from the Green Series, engineered for seamless industrial control and visualisation tasks.

High-performance 15.6-inch industrial HMI with quad-core processor and extensive connectivity.

Main Features

15.6-inch 2K TFT LCD with 1920 x 1080 resolution and 16.7 million true colours.
Quad-core ARM 1.5GHz processor, 512MB memory, and 4GB flash storage for powerful performance.
Versatile connectivity: single Ethernet port (10/100 Mbps), dual serial ports (RS232/RS485/RS422), and USB host for easy integration.
Built-in RTC, USB slave, and recipe storage capabilities.
Durable metallic shell with three-proofing coating and power isolation for enhanced safety and reliability.
Natural air cooling and IP65-compliant front panel for industrial durability.
Pre-installed with the latest configuration software, Kinco DToolsPro.

Detailed Specifications

Display Size	15.6" TFT
Display Area	344.16 mm x 193.59 mm
Resolution	1920 x 1080 pixels
Viewing Angle	80° all directions
Contrast Ratio	1000:1
Backlight	LED, >20,000 hours
Touch Panel	4-wire resistive, 3H surface hardness
Processor	Quad-core ARM 1.5GHz
Memory	512MB
Flash Storage	4GB
Expandable Storage	1 x USB Host
Ports	COM0: RS232/RS485/RS422; COM2: RS232; Ethernet LAN0: 10/100 Mbps
Input Power Supply	DC 18V–28V (isolated)
Power Consumption	15 W @ 24V DC
Insulation Resistance	>50 MO @ 500V DC
Hi-pot Test	500 V AC, 1 min
Shell Material	Metallic with three-proofing coating
Dimensions	395 x 259 x 25.5 mm
Cutout Size	381.5 x 245.5 mm
Weight	2.5 kg
Mounting	Buckle mounting, VESA 100 x 100 mm
Operating Ambient Temperature	0–50°C
Operating Humidity	10–90% RH, non-condensing
Storage Temperature	-20–60°C
Certification	IP65 (front), CE (EN IEC 61000-6-4:2019, EN IEC 61000-6-2:2019)
Cooling Mode	Natural air cooling
Panel Protection	IP65 compliant

Compatible with the latest Kinco DToolsPro configuration software for intuitive operation and setup.

To contact Autech Control Group about G2156E2 Green Series HMI use Get a quote.

Main Features

15.6-inch 2K TFT LCD with 1920 x 1080 resolution and 16.7 million true colours.
Quad-core ARM 1.5GHz processor, 512MB memory, and 4GB flash storage for powerful performance.
Versatile connectivity: single Ethernet port (10/100 Mbps), dual serial ports (RS232/RS485/RS422), and USB host for easy integration.
Built-in RTC, USB slave, and recipe storage capabilities.
Durable metallic shell with three-proofing coating and power isolation for enhanced safety and reliability.
Natural air cooling and IP65-compliant front panel for industrial durability.
Pre-installed with the latest configuration software, Kinco DToolsPro.

Detailed Specifications

Display Size	15.6" TFT
Display Area	344.16 mm x 193.59 mm
Resolution	1920 x 1080 pixels
Viewing Angle	80° all directions
Contrast Ratio	1000:1
Backlight	LED, >20,000 hours
Touch Panel	4-wire resistive, 3H surface hardness
Processor	Quad-core ARM 1.5GHz
Memory	512MB
Flash Storage	4GB
Expandable Storage	1 x USB Host
Ports	COM0: RS232/RS485/RS422; COM2: RS232; Ethernet LAN0: 10/100 Mbps
Input Power Supply	DC 18V–28V (isolated)
Power Consumption	15 W @ 24V DC
Insulation Resistance	>50 MO @ 500V DC
Hi-pot Test	500 V AC, 1 min
Shell Material	Metallic with three-proofing coating
Dimensions	395 x 259 x 25.5 mm
Cutout Size	381.5 x 245.5 mm
Weight	2.5 kg
Mounting	Buckle mounting, VESA 100 x 100 mm
Operating Ambient Temperature	0–50°C
Operating Humidity	10–90% RH, non-condensing
Storage Temperature	-20–60°C
Certification	IP65 (front), CE (EN IEC 61000-6-4:2019, EN IEC 61000-6-2:2019)
Cooling Mode	Natural air cooling
Panel Protection	IP65 compliant

Compatible with the latest Kinco DToolsPro configuration software for intuitive operation and setup.

Read less...

To contact Autech Control Group about G2156E2 Green Series HMI use Get a quote.
