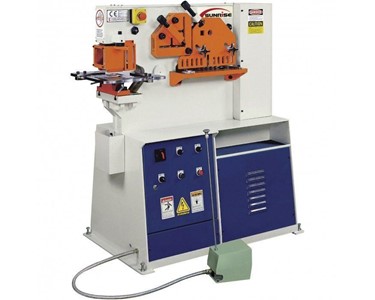

Hydraulic Punch & Shear - 45 Tonne - IW-45M ...

Hydraulic Punch & Shear - 45 Tonne - IW-45M

Supplier: Hare & Forbes Machinery House

Hydraulic Punch & Shear - 45 Tonne - IW-45M | Single Hydraulic Cylinder System | Includes 6 Sets of Round Punches & Dies

Receive 1-3 days from order

Overview

The Sunrise Punch & Shears are manufactured in Taiwan, also known as Ironworkers are well recognised in our Australian market for the machines being reliable & durable due to their structurally well manufactured unique design & engineering excellence. Sunrise is ISO-9001 certified by BVQI, and our products meet the CE safety requirements and regulations. Sunrise relentlessly seeks continuous improvement and product development to keep a step ahead of their competitors.

The hydraulic system & components that drives the shearing beam & punching head is considerably very quiet compared to most other machines and operates efficiently smooth in all modes. The electrical components & DC control circuit are operated at a low 24 volt system & provides full protection & safety with in the separate key locked cabinet.

The Sunrise machines have proven themselves over & over again to provide trouble free service for many years in production and we have references all around Australia to verify our statement.

Features

FLAT BAR SHEAR

SOLID BAR SHEAR

ANGLE SHEAR

Punching capacity up to 40mm standard
Power inching for easy job set up
Adjustable stroke for faster punching
Punch table and shear table both fitted with guides as standard
All work stations guarded
Most cutting blades are four-sided for long life
Adjustable length stop with rule
Four workstations
Fully-filtered hydraulic system
Telemecanique electrical components

Easily adjustable hold-down
Good visibility to blade line
Table support with guides
Angle flange trim/mitre to 45º
Shaped blade to give minimum distortion

Adjustable hold-down for cleaner cut
Single multi-hole hold-down
Optional equipment for cropping channel, tee and I-beam sections

Safety guarding around hold-down
Easily adjustable hold-down
Four cutting edges to all blades
Mitre cut at 45º
Pre-Commissioning:
1. Punch & Shear is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes

6 sets of round punches & dies:
Punches: 20, 22, 24, 26, 28 & 30mm
Dies: 20.7, 23.2, 25.2, 27.2, 29.2 & 31.2mm
Full safety guarding at all workstations
1 metre length stop for shear/crop stations
Tooling to all workstations
Punch, Shear & Notch support tables

Optional Accessories

Punch & dies are available in Round, Square, Rectangle & Oblong shapes

Overview

Features

FLAT BAR SHEAR

SOLID BAR SHEAR

ANGLE SHEAR

Punching capacity up to 40mm standard
Power inching for easy job set up
Adjustable stroke for faster punching
Punch table and shear table both fitted with guides as standard
All work stations guarded
Most cutting blades are four-sided for long life
Adjustable length stop with rule
Four workstations
Fully-filtered hydraulic system
Telemecanique electrical components

Easily adjustable hold-down
Good visibility to blade line
Table support with guides
Angle flange trim/mitre to 45º
Shaped blade to give minimum distortion

Adjustable hold-down for cleaner cut
Single multi-hole hold-down
Optional equipment for cropping channel, tee and I-beam sections

Safety guarding around hold-down
Easily adjustable hold-down
Four cutting edges to all blades
Mitre cut at 45º
Pre-Commissioning:
1. Punch & Shear is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes

6 sets of round punches & dies:
Punches: 20, 22, 24, 26, 28 & 30mm
Dies: 20.7, 23.2, 25.2, 27.2, 29.2 & 31.2mm
Full safety guarding at all workstations
1 metre length stop for shear/crop stations
Tooling to all workstations
Punch, Shear & Notch support tables

Optional Accessories

Punch & dies are available in Round, Square, Rectangle & Oblong shapes
