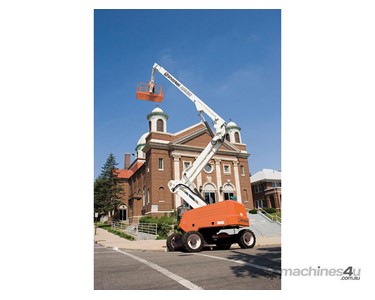

Snorkel Articulated Boom Lift | AB80J

Snorkel - Articulated Boom Lift | AB80J

Supplier: Equipment Sales Australia

Articulated Boom Lift | AB80J

The AB80J is a high-capacity articulated boom lift designed for superior reach and manoeuvrability in challenging construction environments.

Outstanding reach and ‘up and over’ access for demanding worksites.

Key Features

Maximum working height: 26.3 m
Maximum working outreach: 18.1 m
Platform capacity: 227 kg
Weight: 16,692 kg
Four wheel drive, steer and crab steer
Snorkel Guard™ secondary guarding system
Hydraulic platform rotation & proportional joystick controls
Foam filled lug tyres for tough terrain
2 year parts & labour, 5 year structural warranty

Ideal for heavy-duty construction, maintenance and installation roles demanding extensive outreach and elevated working heights, especially where “up and over” access is needed.

Specifications

Max Working Height	26.3 m
Max Platform Height	24.3 m
Max Working Outreach	18.1 m
Clearance Height at Max Outreach	8.5 m
Platform Size	2.44 m x 0.91 m
Overall Width	2.6 m
Overall Length	9.8 m
Stowed Height	3.0 m
Ground Clearance	330 mm
Platform Capacity (SWL)	227 kg
Max Drive Height	24.3 m
Max Wind Speed	12.5 m/s
Max Drive Speed (stowed/elevated)	4.8 km/h (stowed), 1.0 km/h (elevated)
Jib Length/Arc	1.5 m / 140° (+70°/-70°)
Platform Rotation	150°
Raise/Lower Time	240/240 sec
Tailswing	0.89 m
Turret Rotation	360° continuous
Gradeability	30%
Inside/Outside Turning Radius	2.4 m / 4.7 m
Tyres	15 x 625 loader lug foam filled
Drive System	4 wheel drive
Power Source	Kubota V2403 48 kW/65 hp diesel – Tier 4 Final
Weight	16,692 kg

To contact Equipment Sales Australia about Snorkel Articulated Boom Lift | AB80J use Get a quote.
