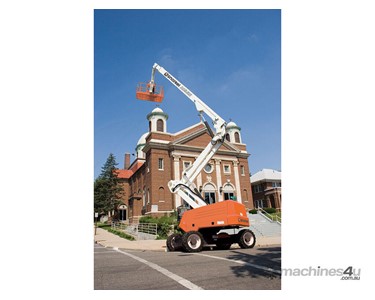

Snorkel Articulated Boom Lift | AB85J
Max Working Height | 27.7 m |
Platform Height | 25.7 m |
Working Outreach | 18.8 m |
Clearance Height at Max Outreach | 8.5 m |
Platform Size | 2.44 m x 0.91 m |
Overall Width | 2.6 m |
Overall Length | 12.5 m |
Stowed Height | 3.0 m |
Ground Clearance | 330 mm |
Safe Working Load (SWL) | 227 kg |
Max Drive Height | 25.7 m |
Max Wind Speed | 12.5 m/s |
Drive Speed (Stowed / Elevated) | 4.8 km/h / 1.0 km/h |
Jib Length | 2.0 m |
Jib Arc | 135° (+70°/-65°) |
Jib Rotation | 140° side to side |
Platform Rotation | 150° |
Raise/Lower Time | 240 / 240 sec |
Tailswing | 0.89 m |
Turret Rotation | 360° continuous |
Gradeability | 30% |
Turning Radius (Inside / Outside) | 2.4 m / 4.7 m |
Tyres | 15 x 625 foam-filled lug |
Drive System | 4 wheel drive |
Power Source | Kubota V2403 48 kW diesel |
Weight | 17,500 kg |
To contact Equipment Sales Australia about Snorkel Articulated Boom Lift | AB85J use Get a quote.
