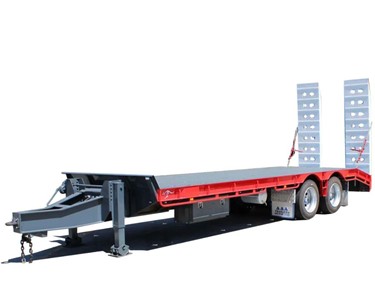

AAA Trailers - Tandem Axle Tag Trailer Get latest price

Read more...

To contact AAA Trailers about AAA Trailers Tandem Axle Tag Trailer use Get a quote.

The AAA Trailers Tandem Axle Tag Trailer combines a robust build with the stability and load distribution benefits of a tandem axle design. With an ATM of 24 tonnes and a GTM of 16.5 tonnes, it is built to manage heavy loads while maintaining smoother handling and reduced tyre wear compared to single axle configurations.

Constructed with a high-tensile steel mainframe and a 5mm forklift-rated steel chequer plate floor, it offers the strength needed for demanding haulage work. The tandem axle setup works with K-Hitch 22.5” drum brake axles and K-Hitch tri-axle FUWA FW520 8-leaf spring suspension for reliable performance under load.

Standard features include a pintle hook coupling, integrated tie-down points, C-channel coaming with tie rails, and bi-fold ramps powered by a 12V electric system. The trailer also comes with EBS multi-volt braking, full LED lighting, alloy quarter guards, two steel toolboxes with stainless steel T-handles, and a spare wheel carrier. Optional extras, such as custom paint, hub odometer, and flashing beacon, are available for additional functionality.

SPECIFICATIONS

Dimensions & Capacity

• ATM: 24T
• GTM: 16.5T
• Tare Weight: Approx. 5.9T
• Total Length: 10.4m (Overall)
• Deck Length: 8.2m

Construction & Frame

• Mainframe: High-tensile steel grade
• Floor: 5mm steel chequered plate, forklift-rated
• Coupling: Pintle hook
• Coaming: C-channel with tie rail
• Tie-Down Points: Integrated into the floor

Axles, Suspension & Braking

• Axles: K-Hitch 22.5” drum brake axles
• Suspension: K-Hitch tri-axle FUWA FW520 8-leaf spring
• Brake Kit: EBS multi-volt 12/24V
• Landing Legs: K-Hitch 2-speed
• Wheels: 10/285 PCD dual steel rims (aluminium optional)
• Tyres: 255/70R22.5

Lighting & Safety

• Lighting: Full LED
• Mudguards: Alloy quarter guards front and rear with AAA Trailers mudflaps
• Spare Wheel Carrier: Single (spare wheel optional)

Onboard Equipment

• Toolboxes: 2 steel with stainless steel “T” handles
• Container Pins: 20ft

Ramps

• Standard Bi-Fold Ramps: 12V electric power pack, N150 battery, and built-in Anderson plug

Optional Extras

• Custom paint – coaming rails
• Hard-wired flashing beacon
• Hub odometer
• Spare wheel: steel or alloy
