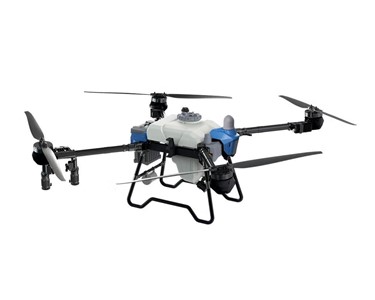

High-capacity spray and granular drone for fast, precise, obstacle-aware farming.

Engineered for demanding agricultural environments, this drone blends advanced aerial spraying, spreading capabilities, and robust terrain sensing to maximise field efficiency. It provides precise, automated solutions for varied crops and challenging terrains, reducing field passes and increasing productivity for commercial growers.

Key Features

High-capacity 70L liquid tank and 100L (80kg) solid spreader hopper for versatile application.
Fusion Perception 360° obstacle sensing suite with dual LiDAR and radar for day/night, all-terrain operation.
Massive 63? propellers and high-thrust motors enabling up to 13.8?m/s flight speed and stable operation.
Upgraded CCMS spray system delivering up to 40?L/min flow, dual-droplet size support (10–420?µm).
Granular spreader with auger and spinner provides smooth delivery up to 280?kg/min, effective width 8?m.
Efficient workflow with modular batteries, rapid charging, and rugged design (IP67/IPX6K rated).
Advanced RTK-level positioning for flight accuracy and ease of use in automated missions.

Specifications

Liquid Tank Capacity	70?L
Solid Tank Capacity	80?kg (100?L)
Spray Width	4–15?m
Max Flow Rate	40?L/min (4 nozzles)
Droplet Size Range	10–420?µm
Obstacle Detection Range	~0.1–150?m (LiDAR); 1–100?m (Radar)
Max Flight Speed	13.8?m/s
Spray Swath	Up to 15?m
Granule Spreader Rate	Up to 280?kg/min (8?m width)

Other Details

Modular power and battery design for high uptime and rapid charging.
Rugged build with IP67/IPX6K rating – resistant to harsh farming environments.
RTK-level positioning for centimetre-level hover and automated flight path accuracy.

To contact Australian Agricultural Drones about EAVision J150 Heavy-Duty Agricultural Spray Drone use Get a quote.
