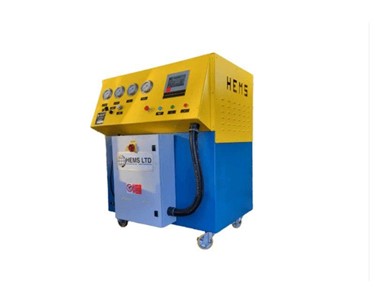

HEMS HE-PHT 415 Portable Hydraulic Cylinder Tester

Unlike traditional testing methods that require moving largeor heavy cylinders to a fixed test bench, the HE-PHT 415 is designed to bringthe tester to the cylinder. Its portable, wheel-mounted design improvesworkflow efficiency and reduces handling time in workshop and field serviceenvironments.

Equipped with an integrated compressor, the systemcan complete the entire testing process from start to finish—including fillingthe cylinder with oil, pressurising the circuit for testing, and flushing thetest oil using compressed air once testing is complete.

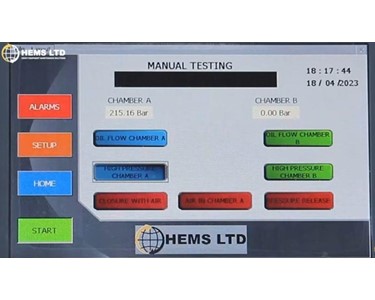

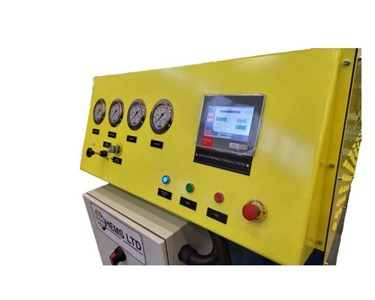

The HE-PHT 415 supports both automatic and manual testingmodes, allowing operators to tailor testing procedures to specificrequirements. All test settings and operating parameters are controlled throughan intuitive touchscreen interface, providing simple operation and fullprocess control.

Operators can easily adjust:

• Maximum operating pressure
• High-pressure settings
• Maximum test pressure levels
• Test cycle parameters

At the completion of each test cycle, the systemautomatically generates a detailed test report, giving operators clearinsight into hydraulic cylinder performance and condition. Reports can bestored digitally or printed for maintenance records and quality assurancedocumentation.

Key Features

• Portable, wheel-mounted hydraulic cylinder testing solution
• Built-in compressor for cylinder emptying and oil flushing
• Automatic and manual testing cycles
• Touchscreen control panel for easy operation
• Adjustable pressure and test parameters
• Automated test report generation
• Digital storage and print-ready reporting
