Powerful lifting up to 160 tonnes with advanced safety features and ergonomic controls.

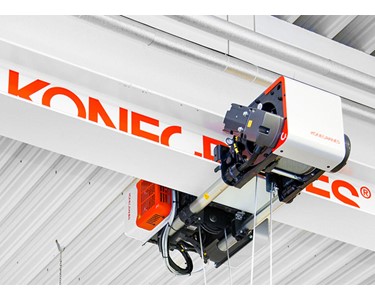

The CXT NEO wire rope hoist crane delivers efficiency and reliability for heavy lifting tasks. With the ability to lift up to 80 tonnes on a single hoist (and up to 160 tonnes with two hoists), this crane offers outstanding versatility for demanding industrial settings. Its ergonomic design and intuitive radio controls enhance operator comfort, supporting fast, accurate load handling.

Main Features

Radio controller for remote operations
Optimised crane layout for space efficiency and accessibility
Available in single, double girder, or under-running configurations for strength and flexibility
Stepless inverter hoisting minimises mechanical stress on structures
Energy chain protects power and control cables, increases safety, and provides a modern appearance
Smart Features assure safe, smooth operation
TRUCONNECT® Remote Services for monitoring and optimisation

Technical Specifications

Lifting capacity	Up to 80 tonnes (1 hoist), up to 160 tonnes (2 hoists)
Lifting height	Up to 12 metres
Span	Up to 28 metres
Duty class	Up to FEM 3m / ISO M6
Control system	ASR; stepless inverter control for hoisting and travelling
Operating system	Radio or pendant
Power supply	Energy chain
Temperature range	+5°C to +40°C (standard)

Key Benefits

Powerful lifting in a pre-engineered package
Up to 50% faster lifting with energy-efficient inverter
Accurate load positioning and minimal stress to building structure
Longer lifetime and lower lifecycle costs
Ergonomic radio control reduces operator fatigue
Easy maintenance and efficient spare parts delivery

To contact Konecranes and Demag about Konecranes CXT NEO Overhead Crane use Get a quote.
