Precision heavy lifting up to 500 tonnes with intelligent control systems.

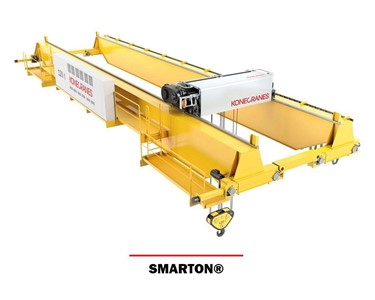

This compact open winch crane has been engineered to provide accuracy and smooth handling for assembly and maintenance, making it the choice of leading industrial companies. Built with high-quality steel double girders, it features a walk-through service platform, secure electrical cabinets, and adaptable trolleys with intelligent software for unrivalled lifting performance.

Key Features

Compact trolley design
Core of Lifting components: specialised motor, gearbox, and controls
Unique hoisting machinery suspension for improved component lifetime, alignment, and performance
Dual rope system with tilted rope sheaves for extended rope life
Foldable trolley service platform for enhanced access
Variable speed with Extended Speed Range (ESR)
Integrated load sensors and condition monitoring for enhanced safety
Intelligent control system offering a wide range of control options
Energy-efficient drives that return braking energy to the power grid
Customisable features according to application requirements
Transparent usage, maintenance, and safety data tracking

Technical Specifications

Lifting capacity	Up to 250 t (1 trolley), Up to 500 t (2 trolleys)
Span	Up to 45 m
Lifting height	Up to 30 m
Runway length	No limitation
Hoist speed control	Inverter hoisting with Extended Speed Range (ESR)
Crane control options	Radio remote control with tablet, cabin, or remote operating station (ROS)
Girder design	Box girder
Trolley supply	Flat cables or energy chain
Compliance	FEM 1Bm to 3m / ISO M3 to M6 / CMAA Class B to D
Certifications	CE, RoHS, CSA
Temperature range	-20°C to +60°C

Integrated Safety Functions

Hoisting safety limit switch
Overload protection
Hoisting motor thermal protection
Rope guides, rope overwrap protections
Hoist overspeed supervision
Hoist brake opening supervision

To contact Konecranes and Demag about Konecranes Open Winch Crane | SMARTON use Get a quote.
