Eaton Airflex 32cb500 36CB525 40CB525 45CB525

Supplier: Henan Dalin Rubber And Telecommunications Apparatus Co.,Ltd

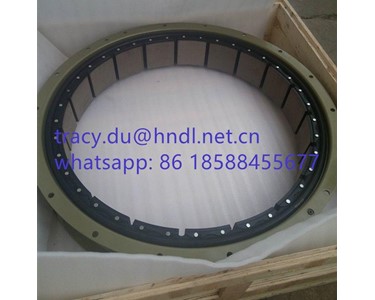

eaton airflex 32cb525 142271LB

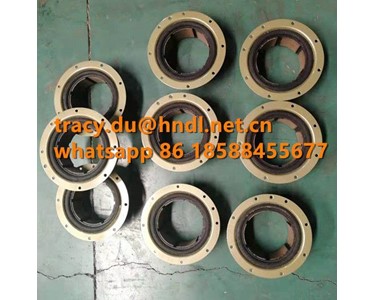

EATON AIRFLEX 4CB200 142840JB

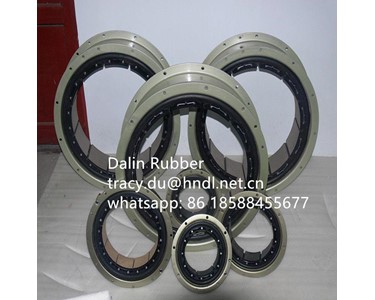

EATON AIRFLEX 40CB525

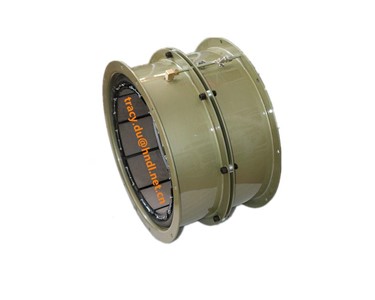

EATON AIRFLEX 45CB525 142081LB

EATON AIRFLEX CLUTCH

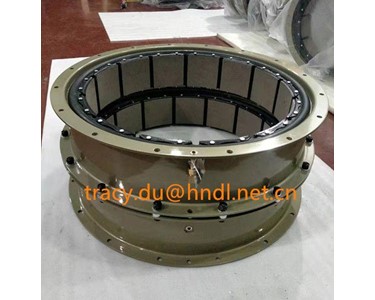

EATON AIRFLEX 24CB500142636DD

ARE YOU looking for Eaton Airflex clutch? 4CB200,6CB200,8CB250,10CB300,12CB350,14CB400,16CB500,18CB500,20CB500,22CB500,24CB500,26CB525,28CB525,30CB525,32CB525,36CB525,40CB525,45CB525

24 Recent Views In Stock

ARE YOU looking for Eaton Airflex clutch? Dalin clutch are 100% interchange with eaton airflex.excellent quality +excellent price+fast delivery.

CB size:

4CB200,6CB200,8CB250,10CB300,12CB350,14CB400,16CB500,18CB500,20CB500,22CB500,24CB500,26CB525,28CB525,30CB525,32CB525,36CB525,40CB525,45CB525

Narrow VC size:

11.5vc500 142639/14vc500 143829/16vc600 142640/20vc600 142641/24vc650142642/28vc650 142643/33vc650 142644/37vc650 142645/42vc650 142647

Wide VC size:
14VC1000 142838/16VC1000 142821/20VC1000 142832/24VC1000 142675/28VC1000 142674/32VC1000 142673/38VC1200 142739/42VC1200 142677/46VC1200 142671/52VC1200 142841/51VC1600 142835/60VC1600 142915/66vc1600 142097

Specifications:

Model	Rated speed n r/min	Rated torque M N·m	Work pressure Mpa	Nominal friction wheel Diameter Φ1mm	Nominal friction wheel Width Bmm	Connection size mm				Intake pipe thread m	Number of friction plates
Model	Rated speed n r/min	Rated torque M N·m	Work pressure Mpa	Nominal friction wheel Diameter Φ1mm	Nominal friction wheel Width Bmm	Rim diameter Φ2	Rim width H	Number and diameter of the screw n-Φ3	Bolt diameter Φ4	Intake pipe thread m	Number of friction plates
4CB200	1800	113	0.7±0.1	99	51	184.1	66	8-Φ6	170	NPT1/8-27	-
6CB200		231		150	51	230	72.5	8-Φ10	254	NPT3/8-18	6
8CB250		485		201	64	284	85	8-Φ10	308		8
10CB300		921		251	76	346	105	12-Φ10	371.5		10
12CB350		1500		302	89	403	112	14-Φ10	428.6		12
14CB400		2230		353	102	454	121	16-Φ10	479.4		14
14CB400( Double Flange )		2230		353	102	498.5	137	16-Φ10	479.4		14
16CB500	1550	3980		403	127	596.9	168	8-Φ13	571.5		10
18CB500	1400	4970		454	127	647.7	168	12-Φ13	619.1		11
20CB500	1300	6060		505	127	698.5	168	12-Φ13	669.9		12
20CB500( Double-column )	1300	1210		505	127	698.5	346	12-Φ13	669.9		12
22CB500	1250	7040		555	127	749.3	168	12-Φ13	720.7		13
24CB500	1200	8480		606	127	800.1	168	16-Φ13	771.5		14
24CB500( Double-column )	1200	17000		606	127	800.1	346	16-Φ13	771.5		14
28CB525	1000	12000		706	133	914.4	176	16-Φ16	882.7		17
32CB525	900	15500		808	133	1016	176	18-Φ16	984.3	NPT1/2-14	19
45CB525	700	29400		1137	133	1362.1	176	24-Φ19	1324	NPT3/4-14	27
