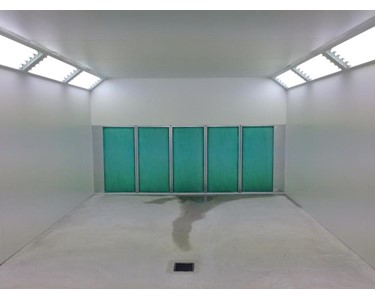

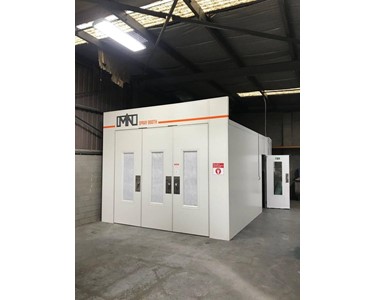

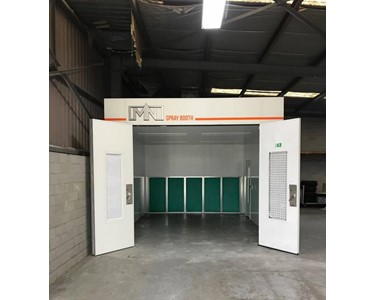

MN Spraybooths Automotive Spray Booth | ...
Power Supply | 415 volts, 32 amps |
Cabin | Fully insulated panel with colorbond finish |
Base | Existing concrete floor, no excavation required |
Air Inlet Fan | Extraction only; supply air remote, roof mount |
Air Exhaust Fan | 700 mm axial antistatic inline impeller, 2.2 kW, 3-phase motor |
Air Exhaust Volume | Rated airflow 21,750 m³/h |
Lighting | 50 T8, 6000K Daylight light tubes |
Exhaust Filters | Glassfibre exhaust filters |
Inlet Filters | 560G fibre inlet ceiling filters |
Entry Doors | Fully insulated bifold for wide opening, with glazed viewing glass |
PA Door | Fully insulated single door with glazed viewing glass |
Protective Coating | Easy peel protective booth coating |
Control Panel | User friendly, AS/ANZ 4114 compliant |
Arrangements | Roof mount, floor mount machinery available |
Air Pressure | Configurable for positive or negative pressure |
To contact MN Spraybooths about MN Spraybooths Automotive Spray Booth | End Draft use Get a quote.
Power Supply | 415 volts, 32 amps |
Cabin | Fully insulated panel with colorbond finish |
Base | Existing concrete floor, no excavation required |
Air Inlet Fan | Extraction only; supply air remote, roof mount |
Air Exhaust Fan | 700 mm axial antistatic inline impeller, 2.2 kW, 3-phase motor |
Air Exhaust Volume | Rated airflow 21,750 m³/h |
Lighting | 50 T8, 6000K Daylight light tubes |
Exhaust Filters | Glassfibre exhaust filters |
Inlet Filters | 560G fibre inlet ceiling filters |
Entry Doors | Fully insulated bifold for wide opening, with glazed viewing glass |
PA Door | Fully insulated single door with glazed viewing glass |
Protective Coating | Easy peel protective booth coating |
Control Panel | User friendly, AS/ANZ 4114 compliant |
Arrangements | Roof mount, floor mount machinery available |
Air Pressure | Configurable for positive or negative pressure |
To contact MN Spraybooths about MN Spraybooths Automotive Spray Booth | End Draft use Get a quote.
