Wolf 3U VPX Rugged Video-Capture & AI ...

Wolf - 3U VPX Rugged Video-Capture & AI Compute Module WOLF-16T0

Supplier: Metromatics

3U VPX Rugged Video-Capture & AI Compute Module WOLF-16T0

The 3U VPX Rugged Video-Capture & AI Compute Module WOLF-16T0 is designed for advanced video capture and AI-enabled mission computing in harsh environments.

Advanced video capture and AI-enabled mission computing.

Receive 4+ weeks from order

Overview

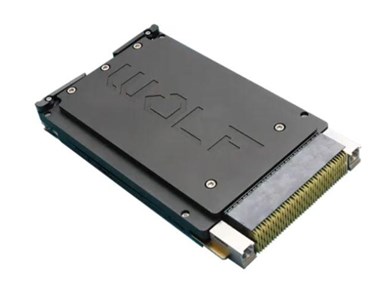

The WOLF VPX3U-THOR-CX7-FGX2-SBC (WOLF-16T0) is a cutting-edge, SOSA-aligned 3U VPX module engineered for advanced video capture, format conversion, and AI-enabled mission computing. It integrates the NVIDIA IGX Thor GPU, Arm Neoverse CPU, and FGX2 FPGA, delivering seamless integration of mixed-format video streams, high-speed networking, and real-time edge AI performance.

Key Features

SOSA-aligned 3U VPX (slot profile 14.2.16) for open-architecture mission system integration.
NVIDIA IGX Thor GPU + Arm Neoverse V3AE CPU: 2,560 CUDA cores + 96 Gen 5 Tensor Cores for AI/ML and vision workloads.
128 GB ECC LPDDR5X memory (~273 GB/s bandwidth) for large AI models and high-resolution video streams.
Integrated ConnectX-7 SmartNIC: Up to 100 Gb Ethernet, PCIe Gen 5, RDMA/GPUDirect for ultra-high-speed networking.
WOLF FGX2 FPGA video/format conversion engine: Supports video capture (SDI, CVBS, legacy formats) and real-time format conversion.
Rugged design: –40 °C to +85 °C operation, shock/vibration hardened, conduction-cooled for high thermal-load environments.
Modular power configuration: 70 W to 150 W depending on system requirements.

Technical Specifications

The technical specifications of the WOLF-16T0 module are designed to meet the demands of rugged Defence and Aerospace platforms.

Component	Specification
GPU	NVIDIA IGX Thor with 2,560 CUDA cores and 96 Gen 5 Tensor Cores
CPU	14-core Arm Neoverse V3AE
Memory	128 GB ECC LPDDR5X, 256-bit width, ~273 GB/s
Networking	ConnectX-7 SmartNIC, up to 100 Gb Ethernet, PCIe Gen 5
Video/Format Conversion	WOLF FGX2 FPGA supporting SDI, CVBS, and legacy formats
Operating Temperature	–40 °C to +85 °C
Shock/Vibration	40 g shock, 10 g vibration
Power	70 W to 150 W

Applications

The WOLF-16T0 is ideal for a variety of mission-critical applications.

ISR pods and vision systems requiring the ingestion of mixed-format video streams, real-time conversion, and AI inference.
EO/IR turret systems needing high-performance video capture, analytics, and networked distribution.
Autonomous vehicle and unmanned systems where real-time video processing, AI perception, and networked data fusion are required.
Sensor fusion and mission compute nodes in C5ISR and edge systems where heterogeneous video inputs meet AI processing and secure data throughput.

Local Support & Integration

Metromatics provides local sales, technical consultation, and integration expertise for Defence and Aerospace customers across Australia and New Zealand. For detailed technical information, view the WOLF VPX3U-THOR-CX7-FGX2-SBC (WOLF-16T0) datasheet containing full specifications, I/O mapping, and configuration options.

Overview

Key Features

SOSA-aligned 3U VPX (slot profile 14.2.16) for open-architecture mission system integration.
NVIDIA IGX Thor GPU + Arm Neoverse V3AE CPU: 2,560 CUDA cores + 96 Gen 5 Tensor Cores for AI/ML and vision workloads.
128 GB ECC LPDDR5X memory (~273 GB/s bandwidth) for large AI models and high-resolution video streams.
Integrated ConnectX-7 SmartNIC: Up to 100 Gb Ethernet, PCIe Gen 5, RDMA/GPUDirect for ultra-high-speed networking.
WOLF FGX2 FPGA video/format conversion engine: Supports video capture (SDI, CVBS, legacy formats) and real-time format conversion.
Rugged design: –40 °C to +85 °C operation, shock/vibration hardened, conduction-cooled for high thermal-load environments.
Modular power configuration: 70 W to 150 W depending on system requirements.

Technical Specifications

The technical specifications of the WOLF-16T0 module are designed to meet the demands of rugged Defence and Aerospace platforms.

Component	Specification
GPU	NVIDIA IGX Thor with 2,560 CUDA cores and 96 Gen 5 Tensor Cores
CPU	14-core Arm Neoverse V3AE
Memory	128 GB ECC LPDDR5X, 256-bit width, ~273 GB/s
Networking	ConnectX-7 SmartNIC, up to 100 Gb Ethernet, PCIe Gen 5
Video/Format Conversion	WOLF FGX2 FPGA supporting SDI, CVBS, and legacy formats
Operating Temperature	–40 °C to +85 °C
Shock/Vibration	40 g shock, 10 g vibration
Power	70 W to 150 W

Applications

The WOLF-16T0 is ideal for a variety of mission-critical applications.

ISR pods and vision systems requiring the ingestion of mixed-format video streams, real-time conversion, and AI inference.
EO/IR turret systems needing high-performance video capture, analytics, and networked distribution.
Autonomous vehicle and unmanned systems where real-time video processing, AI perception, and networked data fusion are required.
Sensor fusion and mission compute nodes in C5ISR and edge systems where heterogeneous video inputs meet AI processing and secure data throughput.

Local Support & Integration

Read less...

To contact Metromatics about Wolf 3U VPX Rugged Video-Capture & AI Compute Module WOLF-16T0 use Get a quote.

VPX3U-THOR-CX7-FGX2-SBC-DatasheetWOLF-16T0(0.31MB)
