Enerpat - Triple-Compression Scrap Metal Baler | TH Series

Supplier: Enerpat Group

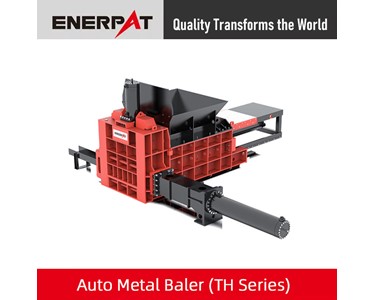

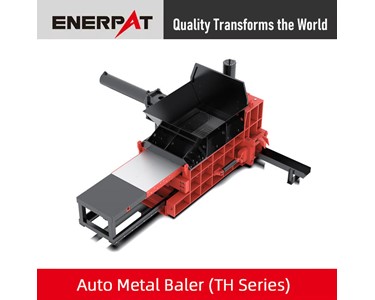

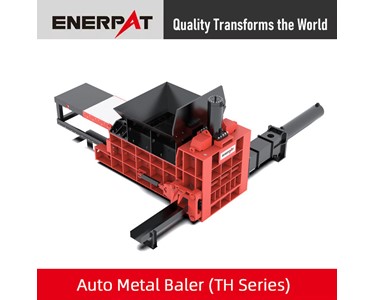

Triple-Compression Scrap Metal Baler | TH Series

Triple-Compression Scrap Metal Baler is a robust, efficient baling solution designed for recycling yards and metal processing facilities, delivering high-density bales of scrap metal with fully automated operation.

Achieves industry-leading high-density bales with fully automated operation for maximum efficiency.

Key Features

Heavy-duty triple cylinder design for high-density bales
Handles aluminium, copper, ferrous, and stainless scrap
Onboard blade automatically trims oversize pieces
Full automatic cycle and user-friendly touchscreen controls
Remote diagnostics via router
Can be installed indoors or outdoors

Core Advantages

Robust design with pre-tensioned press box and wear-resistant liners
Efficient hydraulic system with modular valve assembly and high flow rates
Service support available globally
Remote control with real-time monitoring
Built-in maintenance programs and automatic alarms for troubleshooting

Technical Specifications

Model	Bale Size (mm)	Motor Power (kW)	Cycle Time (s, no-load)	Bales/h (90% avail.)	Max Fe Capacity (t/h)	Max Cu+Ms Capacity (t/h)	Max Al Capacity (t/h)	Press Box (mm)	Machine Dimensions (mm)
AMB-TH-2080	250 x 250 (var.)	1 x 55	25	137	10 (69 kg)	11 (78 kg)	4 (28 kg)	795 x 1,925 x 600	4,550 x 5,800 x 3,000
AMB-TH-2210	300 x 300 (var.)	1 x 55	34 - 23	101 - 149	13 - 19 (124 kg)	15 - 22 (141 kg)	5 - 7 (44 kg)	1,020 x 2,235 x 800	5,290 x 6,605 x 3,735
AMB-TH-2212	300 x 300 (var.)	1 x 90	38 - 26	90 - 132	12 - 17 (124 kg)	13 - 20 (141 kg)	4 - 6 (44 kg)	1,245 x 2,235 x 800	5,990 x 6,605 x 3,775
AMB-TH-2812	400 x 400 (var.)	2 x 55	40 - 36	86 - 95	24 - 26 (264 kg)	27 - 30 (301 kg)	8 - 9 (94 kg)	1,245 x 2,840 x 1,100	6,360 x 8,035 x 4,600
AMB-TH-2815	400 x 400 (var.)	1 x 55	46 - 28	74 - 122	21 - 34 (264 kg)	23 - 39 (301 kg)	7 - 12 (94 kg)	1,500 x 2,840 x 1,100	7,060 x 8,035 x 4,615
AMB-TH-6020	600 x 600 (var.)	1 x 90	60	57	47 (791 kg)	54 (903 kg)	16 (272 kg)	2,000 x 6,000 x 1,600	10,155 x 15,650 x 6,110
AMB-TH-60201	600 x 600 (var.)	2 x 55 1 x 90 2 x 55 1 x 90 2 x 90 3 x 90 3 x 90 3 x 90	69	50	59 (1,130 kg)	67 (1,290 kg)	20 (389 kg)	2,010 x 6,000 x 1,600	10,495 x 15,650 x 6,110

Additional Highlights

Pre-formed high-pressure piping
V-shaped shear blade and grooved floor
Wear-resistant replaceable liners
Siemens/Schneider PLC for control system
Integrated alarm system for safety and maintenance

To contact Enerpat Group about Enerpat Triple-Compression Scrap Metal Baler | TH Series use Get a quote.

Key Features

Heavy-duty triple cylinder design for high-density bales
Handles aluminium, copper, ferrous, and stainless scrap
Onboard blade automatically trims oversize pieces
Full automatic cycle and user-friendly touchscreen controls
Remote diagnostics via router
Can be installed indoors or outdoors

Core Advantages

Robust design with pre-tensioned press box and wear-resistant liners
Efficient hydraulic system with modular valve assembly and high flow rates
Service support available globally
Remote control with real-time monitoring
Built-in maintenance programs and automatic alarms for troubleshooting

Technical Specifications

Model	Bale Size (mm)	Motor Power (kW)	Cycle Time (s, no-load)	Bales/h (90% avail.)	Max Fe Capacity (t/h)	Max Cu+Ms Capacity (t/h)	Max Al Capacity (t/h)	Press Box (mm)	Machine Dimensions (mm)
AMB-TH-2080	250 x 250 (var.)	1 x 55	25	137	10 (69 kg)	11 (78 kg)	4 (28 kg)	795 x 1,925 x 600	4,550 x 5,800 x 3,000
AMB-TH-2210	300 x 300 (var.)	1 x 55	34 - 23	101 - 149	13 - 19 (124 kg)	15 - 22 (141 kg)	5 - 7 (44 kg)	1,020 x 2,235 x 800	5,290 x 6,605 x 3,735
AMB-TH-2212	300 x 300 (var.)	1 x 90	38 - 26	90 - 132	12 - 17 (124 kg)	13 - 20 (141 kg)	4 - 6 (44 kg)	1,245 x 2,235 x 800	5,990 x 6,605 x 3,775
AMB-TH-2812	400 x 400 (var.)	2 x 55	40 - 36	86 - 95	24 - 26 (264 kg)	27 - 30 (301 kg)	8 - 9 (94 kg)	1,245 x 2,840 x 1,100	6,360 x 8,035 x 4,600
AMB-TH-2815	400 x 400 (var.)	1 x 55	46 - 28	74 - 122	21 - 34 (264 kg)	23 - 39 (301 kg)	7 - 12 (94 kg)	1,500 x 2,840 x 1,100	7,060 x 8,035 x 4,615
AMB-TH-6020	600 x 600 (var.)	1 x 90	60	57	47 (791 kg)	54 (903 kg)	16 (272 kg)	2,000 x 6,000 x 1,600	10,155 x 15,650 x 6,110
AMB-TH-60201	600 x 600 (var.)	2 x 55 1 x 90 2 x 55 1 x 90 2 x 90 3 x 90 3 x 90 3 x 90	69	50	59 (1,130 kg)	67 (1,290 kg)	20 (389 kg)	2,010 x 6,000 x 1,600	10,495 x 15,650 x 6,110

Additional Highlights

Pre-formed high-pressure piping
V-shaped shear blade and grooved floor
Wear-resistant replaceable liners
Siemens/Schneider PLC for control system
Integrated alarm system for safety and maintenance
