19" TuffTouch Rugged Metal Enclosed Industrial Display Monitor Price Guide: $3,815

Supplier: Stealth

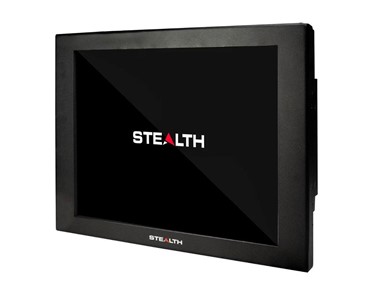

19" TuffTouch Rugged Metal Enclosed Industrial Display Monitor

The TT-1906-RT is a rugged 19-inch industrial display designed for demanding industrial and field environments, offering maximum visibility and versatile power options.

Rugged 19" industrial touchscreen display with versatile power options and NEMA 4 sealed protection.

Key Benefits

Rugged metal enclosure with NEMA 4 sealed front panel for demanding environments
Large 19" (48.3 cm) TFT LED-backlit display with 1280 x 1024 resolution and 350-nit brightness for enhanced visibility
Resistive touchscreen with serial (RS232) and USB interfaces for reliable operation
Flexible power options: AC adapter, 43-160V DC, or 180-300V DC for diverse industrial installations
VESA 100mm mounting with extended temperature operation (-10°C to +60°C) and 3-year warranty

Applications

Specifications

Display	48.3 cm (19.0") TFT, 350 nits brightness, 1280 x 1024 resolution, aspect ratio 5:4
Touchscreen	Resistive, with USB 2.0 and RS232 interface
Video Inputs	DisplayPort, DVI-I (with DVI to VGA adaptor), HDMI
Power Input Options	90–264V AC (external adapter), 9–36V DC, 43–160V DC, 180–300V DC
Enclosure	Black powder-coated metal, NEMA 4 sealed (front), VESA 100mm mounting
Dimensions (W x D x H)	46.86 x 6.81 x 36.98 cm (without power supply) 46.86 x 10.39 x 36.98 cm (with power supply)
Unit Weight	7.96 kg
Operating Temperature	-10°C to +60°C
Storage Temperature	-30°C to +85°C
Compliance	CE, CSA C22.2#62368-1:2019 Ed.3, FCC, RoHS, UL 62368-1:2019 Ed.3

To contact Stealth about 19" TuffTouch Rugged Metal Enclosed Industrial Display Monitor use Get a quote.
