24" Full HD Industrial All-in-One Panel ...

24" Full HD Industrial All-in-One Panel PC SPC-2410 Price Guide: $5,405

Supplier: Stealth

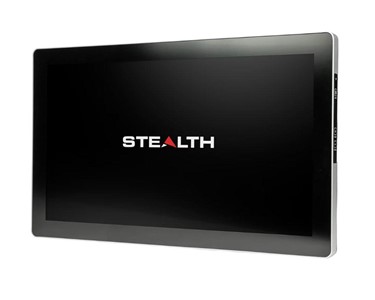

24" Full HD Industrial All-in-One Panel PC SPC-2410

The SPC-2410 is a 24" industrial all-in-one panel PC, designed for demanding HMI and automation applications, offering robust performance in harsh environments.

Rugged, fanless 24" industrial panel PC with multi-touch, triple display support and extreme operating temperature range.

Key Features

Premium 24" Full HD (1920 x 1080) PCAP touchscreen with detailed display and 10-point multitouch.
Powered by 12th/13th/14th Gen Intel® Core™ processors in a rugged, fanless heavy-duty aluminium chassis.
Dual 2.5" SSD removable drive bays and internal M.2 slot for flexible storage options.
Supports up to three displays: one internal touchscreen, plus two external outputs (DisplayPort and HDMI).
NEMA 4/IP65-rated front panel for industrial protection against dust and water.
Optional wide temperature operation (-30°C to +70°C) and TPM 2.0 security module.
CE, FCC, UKCA, and RoHS compliant.
Custom-built configurations available.

Applications

Technical Specifications

Processor Options	Intel® Core™ i3-12100TE, i5-12500TE, i7-12700TE
Memory	2x DDR4 sockets, up to 64GB
Display	24.0" LCD, 1920 x 1080, 300/500 nits, 16:9 aspect ratio, 5000:1 contrast
Touchscreen	10-point Projected Capacitive (PCAP)
Graphics	Intel® UHD Graphics 770, Triple display support
Storage	2x removable 2.5" SSD bays (256GB–2TB), internal M.2 slot, power loss protection up to 1TB
I/O Ports	1x HDMI 2.0b 2x 2.5Gb LAN (RJ45) 2x Audio jacks (Mic-in, Line-out) 2x DisplayPort 1.4a++ 2x RS-232/422/485 2x USB 2.0 2x USB 3.2 Gen2
Operating System Options	Ubuntu Linux, Windows 10/11 (64-bit), Windows Server 2022
Power	12-28V DC, includes 100-240V AC to 24V DC 90W adapter
Operating Temperature	-10°C to +55°C (standard), -30°C to +70°C (optional)
Chassis	Heavy duty aluminium, fanless, rugged
Dimensions	573.6 mm (W) x 83.5 mm (D) x 367 mm (H)
Weight	6.4 kg (depending on config)
Certifications	CE, FCC, UKCA, RoHS

Options & Accessories

To contact Stealth about 24" Full HD Industrial All-in-One Panel PC SPC-2410 use Get a quote.
