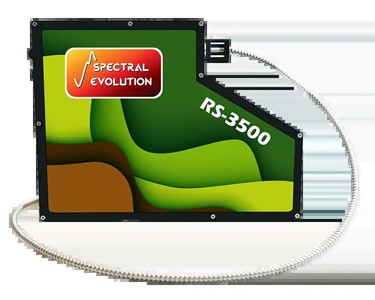

NIR Analyser | RS-3500 Spectroradiometer

The RS-3500 is a full-range portable spectroradiometer designed for high-resolution remote sensing, environmental research, and field analysis applications.

Video for Spectral Evolution NIR Analyser | RS-3500 Spectroradiometer

High-resolution portable spectroradiometer covering a wide 350–2500 nm range for advanced field research.

Overview

The RS-3500 is a high-resolution, cost-effective fibre optic spectroradiometer covering a broad spectral range of 350-2500nm. With advanced array detector technology and robust construction, this unit is ideal for field-based remote sensing and scientific measurements.

Key Features

350–2500 nm spectral range for broad analysis capabilities
100% diode array optics with no moving parts for enhanced stability
Removable/replaceable fibre optic cable
Rugged anodised aluminium construction suitable for field conditions
Factory-calibrated radiance/irradiance using NIST traceable sources
Auto exposure & auto dark shutter for optimal data quality
External lithium-ion rechargeable battery for mobility
Wireless connectivity for ease of data transfer
Compatible with Sensaprobe™ accessory with a built-in camera
Includes DARWin™ SP Data Acquisition Software

Specifications

Spectral Range	350–2500 nm
Spectral Resolution	2.8 nm @ 700 nm, 8 nm @ 1500 nm, 6 nm @ 2100 nm
Spectral Sampling Bandwidth	1 nm increments; 2151 channels
Detectors	512-element Si Array + 2x 256-element TE-cooled InGaAs Arrays
Calibration	NIST traceable radiance/irradiance calibration
Noise Equivalence Radiance	0.8 × 10^-9 W/cm²/nm/sr @ 400 nm 1.2 × 10^-9 W/cm²/nm/sr @ 1500 nm 1.8 × 10^-9 W/cm²/nm/sr @ 2100 nm
Power	7.5 V, 22.5 W
Dimensions	215.9 × 304.8 × 88.9 mm
Weight	3.3 kg
Interface	USB, wireless
Minimum Scan Speed	100 ms
Wavelength Reproducibility	0.1 nm
Wavelength Accuracy	±0.5 nm bandwidth
Input	1.5 m fibre optic (25° field of view), with optional fore optics/longer cables available
Operational Temperature Range	0–40 °C
Maximum Radiance	VNIR 2× Solar, SWIR 10× Solar

Typical Applications

Ground truthing
Environmental and agricultural research
Ecosystem and forestry canopy analysis
Glacial change and climate studies
Atmospheric and water body studies
Plant species identification and crop health monitoring
Urban development and soil assessment

To contact Portable Analytical Solutions Pty Ltd about Spectral Evolution NIR Analyser | RS-3500 Spectroradiometer use Get a quote.
